Communication line of LonWorks category

Supported types and device versions

A communication with LonWorks networks is implemented via the RNI interface of Echelon devices (SLTA, PCLTA, iLON-10, ...) with the help of the Windows system driver. The driver is installed together with "Echelon OpenLDV Installer" available on http://www.echelon.com. The communication was tested on the following interfaces:


Communication line configuration


Device

Set a device name (e.g. LON1, LON2 up to LONx according to the driver configuration (older devices as SLTA, etc.) or the interface name configured in "Control Panel" -> "LonWorks Interfaces" in case of the new devices as iLON-10 driver, which is installed through the Echelon OpenLDV Installer.

The file ldv32.dll had to be copied into an installation directory of the D2000 System in case of older interfaces. OpenLDV Installer does not require this file.

Node address parameters configuration

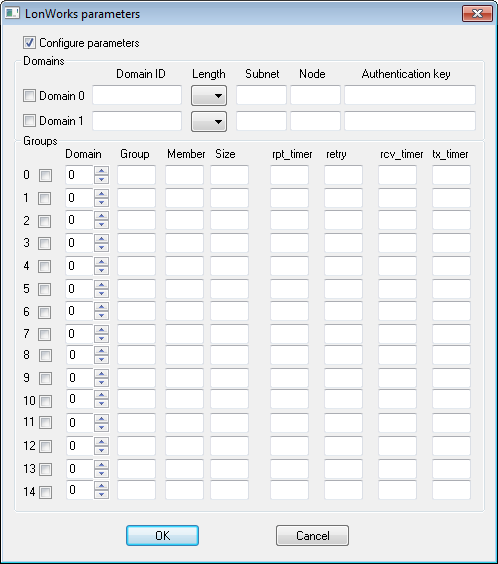

Click on the button Node parameters in the tab LonWorks and the following dialog box opens. It allows editing the node address parameters.

Check Configure parameters if you want to configure the node, otherwise, all the address parameters will not change.


Change of domain address parameters

The node will belong to the domain according to the parameters in the domain table. Choose Domain 0 or Domain 1. The domain will be deactivated if you do not choose any of these options.

Domain table parameters:

Note: An utility Echelon NodeUtil always manipulates with the Domain 1 table to receive the broadcast messages.


Change of Group Address parameters

After checking the checkbox from 0 to 14, the node will belong to selected groups (Group Address).

Group address parameters:

Table 1

Encoding of Timer Field Values (ms)

Valuerpt_timerrcv_timertx_timer
01612816
12419224
23225632
34838448
46451264
59676896
61281024128
71921536192
82562048256
93843072384
105124096512
117686144768
12102481921024
131536122881536
142048163842048
153072245763072
